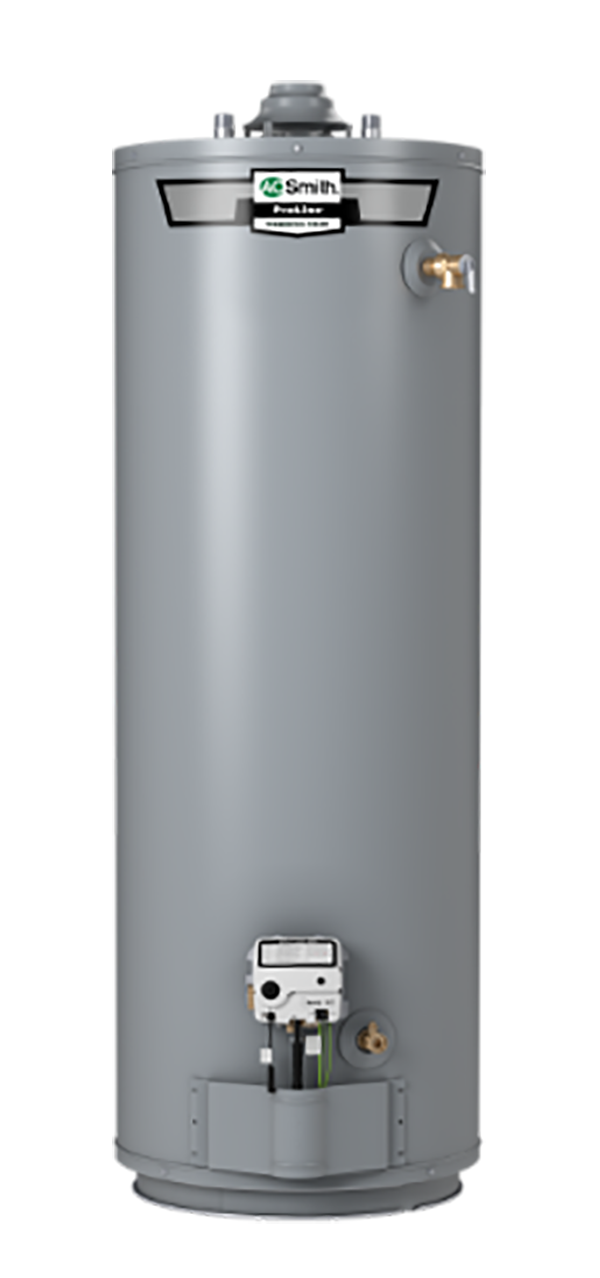

ProLine XE Power Vent 50-Gallon Propane Water Heater

The ProLine® XE Power Vent gas water heater is engineered to maximize efficiency while offering greater flexibility in installation options.

Featuring a 50-gallon (nominal) tank and a 50,000 BTU propane burner, the GPVT-50 (LP) Power Vent delivers a first hour rating of 90 gallons and a recovery rate of 55.9 gallons per hour. With an 0.72 Uniform Energy Factor, this water heater is ENERGY STAR® qualified. It carries a 6-year limited warranty, and meets Low NOx emission requirements.

Categories: ,

Description

  • 3-position Rotatable Blower Outlet
  • Our exclusive 3-position rotatable blower outlet adds flexibility for an easy installation.
  • CoreGard™ Anode Rod
  • A. O. Smith’s anode rods have a stainless steel core that extends the life of the anode rod allowing superior tank protection far longer than standard anode rods.
  • Brass Drain Valve
  • • Solid brass, tamper resistant, enhanced-flow, ball type, valve.
  • • Uses a standard female hose fitting that allows for fast and easy draining during maintenance.
  • • Screwdriver slot features a 1/4 turn radius, for straight-through water flow and a quick and positive shut off.
  • T&P Relief Valve
  • Top-mounted T&P relief valve available as an option.
  • Tech Specs
  • Nominal Capacity: ? 50
  • Rated Storage Volume ? 48
  • UEF 0.72
  • Maximum BTUs: 50,000
  • Power Source: Propane
  • Limited Tank Warranty: 6 Years
  • Limited Parts Warranty: 6 Years
  • Anode: Standard Anode
  • T&P Relief Valve: Yes
  • Pilot Reset Button: Yes
  • Ignition Type: Electronic
  • Water Connection Location: Top
  • Water Connection Size: 3/4"
  • Emissions: Low NOx
  • LEED Rating: 1
  • ENERGY STAR® Certified: Yes
  • FVIR Certified: Yes
  • First Hour Rating: 97
  • Dimensions & Venting
  • Type: Tall
  • Height: 58 1/8"
  • Height w/Draft Hood: 68 1/8"
  • Diameter: 22"
  • Width: 22"
  • Depth: 29 1/8"
  • Vent Type: Power Vent
